Coin Vending Products
Coin Chutes/Slides

Our coin chutes/slides are available in five base models, each with a range of optional features. All models come with our patented V-notch sizing system, which provides a greater rejection of slugs. Our chutes/slides are made in the USA and are backed by a 1 year warranty.

View Ordering Guide

G4
g4

Available Denominations: 0 – $1.00

Thick hardened front plate to protect slides from direct attackSliding stainless steel gates protects from tampering and rustingStainless steel sizing dogs provide superior protection from direct slide forcingHardened steel V notch coin sizing block means greater  rejection of slugs, tile and foreign coinsHardened steel buffer plate works with the stainless steel dogs to give the ultimate protection from direct slide attack.

V5
v5

Available Denominations: 0 – $1.25

Thick hardened front plate to protect slides from direct attackSliding stainless steel gates protects from tampering and rustingStainless steel sizing dogs provide superior protection from direct slide forcingHardened steel V notch coin sizing block means greater rejection of slugs, tile and foreign coinsHardened steel buffer plate works with the stainless steel dogs to give the ultimate protection from direct slide attack.

V5 Coin Chutes/Slides can operate on international coinage from: Brazil, Canada, Chile, China, Cyprus, Denmark, England, Finland, Japan, Kuwait, Lebanon, Mexico, Philippines, South Africa, Taiwan, Tobago, Trinidad

V7
v7

Available Denominations: $0.50-$3.50 USD. Operational settings are also available for international coinage.

Thick hardened front plate to protect slides from direct attackSliding stainless steel gates protects from tampering and rustingStainless steel sizing dogs provide superior protection from direct slide forcingHardened steel V notch coin sizing block means greater  rejection of slugs, tile and foreign coinsHardened steel buffer plate works with the stainless steel dogs to give the ultimate protection from direct slide attack.

V8
v8

Available Denominations: 0-$2.00 USD.

Thick hardened front plate to protect slides from direct attackSliding stainless steel gates protects from tampering and rustingStainless steel sizing dogs provide superior protection from direct slide forcingHardened steel V notch coin sizing block means greater  rejection of slugs, tile and foreign coinsHardened steel buffer plate works with the stainless steel dogs to give the ultimate protection from direct slide attack.

V14
v13

Available Denominations: 0 – $3.50

Thick hardened front plate to protect slides from direct attackSliding stainless steel gates protects from tampering and rustingStainless steel sizing dogs provide superior protection from direct slide forcingHardened steel V notch coin sizing block means greater  rejection of slugs, tile and foreign coinsHardened steel buffer plate works with the stainless steel dogs to give the ultimate protection from direct slide attack.

Ordering Guide
DescriptionModelStyleOptions*Vend Price**
Electronic Switch V89800XXXXXX
Electronic Switch V59500XXXXXX
V7 (13) US2116XXXXXX
Vertical 52700XXXXXX
Looney V52735XXXXXX
Canadian V82034003 (REQUIRED)XXX
Vertical 82000000XXX
V5 Token 118-1 .880 DIA2701XXXXXX
V5 Token 118-5 .990/984 DIA2704XXXXXX
V5 Token 118-10 "DD"2706XXXXXX
V5 Token .900 DIA2702XXXXXX
V8 Token 118-14 RIM2003XXXXXX
V8 Token 118-1 .880 DIA2001XXXXXX

Part Number: Model-Style-Options-Vend Price

* Options:

  • 000- None
  • 006- Pool Table Mount
  • 042- Ultra-Plus (includes anti-stringing, slide return, jamming guards and built in magnet)

** Vend Price: Choose vend price or number of tokens, for example 003 for 3 tokens

4100 Series Coin Drops

Greenwald Industries’ 4100 Series Coin Drops’ unique design allows the drop to be highly selective to assure proper coin acceptance. Stainless-steel face plate and all-steel construction are engineered to exacting original equipment manufacturer standards. Coin drops are specifically designed for machine manufactured by ADC, IDC, Maytag, SpeedQueen, UniMac and Whirlpool. Foreign currencies available upon request.

coindrops
  • Stainless-steel face plate
  • All steel construction
  • Coin return
  • Fewer service calls for erratic coin drops
  • Simple to service and clean
  • Anti-tilt feature deters vandalism
  • Available for US and foreign currencies

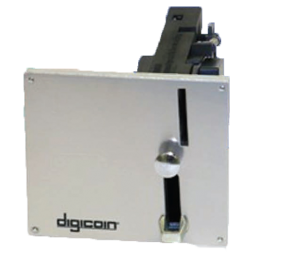

DigiCoin™ Digital Coin Acceptor

Greenwald Industries’ DigiCoinTM, the only Digital Coin Acceptor that is programmed in the factory to accept your preferred coins and tokens.

digicoin
  • Accepts up to 12 unique coins or tokens
  • Resists slugs
  • Polarity switch to accommodate different machines
  • Stainless-steel face plate on all models
  • 2 outputs
  • 12-24 volt AC/DC
  • Operating temperature: +50oF to + 158oF (10oC to 70oC)
  • Easy to clean
  • Full 1-year warranty
Money Boxes

Maximum Security — Designed and Engineered for a Secure Fit

Greenwald Industries’ Money Boxes are constructed of one-piece galvanized steel for added strength and rust resistance. The thick flanged back-plate provides additional protection for a direct attack. We offer a wide choice of locks from standard to high-security, and many unique sizes to fit metercase variations.

View Ordering Guide

UG400
new-money-boxes

Part Number: 8-1150-X-X

  • 0:  Tubular
  • 42: Sentinel III
  • 9: Duo
  • 28: Cobra
  •  25: Abloy
  • 10: Medeco

Tray #: 8-2128

Applications: Old SpeedQueen, GE, Sears, Huebsch,IDC

Height: 2.375″

Width: 3.515″

Length: 4.0″

Weight: 1.75 lb

Capacity: $45

Money Boxes per Case: 20

UG400A
new-money-boxes

Part Number: 8-1210-X-X

  • 0:  Tubular
  • 42: Sentinel III
  • 9: Duo
  • 28: Cobra
  •  25: Abloy
  • 10: Medeco

Tray #: 8-2170

Applications: Wascomat, GE, SpeedQueen, Huebsch, Whirlpool

Height: 2.375″

Width: 3.515″

Length: 5.5″

Weight: 1.75 lb

Capacity: $70

Money Boxes per Case: 20

UG400B
new-money-boxes

Part Number: 8-1240-X-X

  • 0:  Tubular
  • 42: Sentinel III
  • 9: Duo
  • 28: Cobra
  •  25: Abloy
  • 10: Medeco

Tray #: 8-2235



Height: 2.375″

Width: 3.515″

Length: 7.84″

Weight: 2.1 lb

Capacity: $120

Money Boxes per Case: 20

UG800
new-money-boxes

Part Number: 8-1170-X-X

  • 0:  Tubular
  • 42: Sentinel III
  • 9: Duo
  • 28: Cobra
  •  25: Abloy
  • 10: Medeco

Tray #: 8-2138

Applications: Large capacity Whirlpool with meter case removed

Height: 3.175″

Width: 3.515″

Length: 5.875″

Weight: 2.25 lb

Capacity: $130

Money Boxes per Case: 20

UG800A
new-money-boxes

Part Number: 8-1175-X-X

  • 0:  Tubular
  • 42: Sentinel III
  • 9: Duo
  • 28: Cobra
  •  25: Abloy
  • 10: Medeco

Tray #: 8-2138-1

Applications: Sears/Kenmore (post 1975)

Height: 3.175″

Width: 3.515″

Length: 4.0″

Weight: 2 lb

Capacity: $70

Money Boxes per Case: 20

UG800B
new-money-boxes

Part Number: 8-1275-X-X

  • 0:  Tubular
  • 42: Sentinel III
  • 9: Duo
  • 28: Cobra
  •  25: Abloy
  • 10: Medeco

Tray #: 8-2138-2

Applications: Electrolux, Maytag top load washer & dryer (post 1996)

Height: 3.175″

Width: 3.515″

Length: 7.25″

Weight: 2.4 lb

Capacity: $150

Money Boxes per Case: 20

UG800C
new-money-boxes

Part Number: 8-1286-X-X

  • 0:  Tubular
  • 42: Sentinel III
  • 9: Duo
  • 28: Cobra
  •  25: Abloy
  • 10: Medeco

Tray #: 8-2138-3

Applications: SpeedQueen front loaders, WCRD2050, WCRDMCD330, GE

Height: 3.175″

Width: 3.515″

Length: 5.875″

Weight: 2.25 lb

Capacity: $130

Money Boxes per Case: 20

MG3000
new-money-boxes

Part Number: 8-1260-X-X

  • 0:  Tubular
  • 42: Sentinel III
  • 9: Duo
  • 28: Cobra
  •  25: Abloy

Tray #: 8-2237

Applications: Wascomat, GE, GQ, Huebsch, Whirlpool

Height: 2.4″

Width: 3.515″

Length: 5.5″

Weight: 1.75 lb

Capacity: $70

Money Boxes per Case: 20

MG3000B
new-money-boxes

Part Number: 8-1270-X-X

  • 0:  Tubular
  • 42: Sentinel III
  • 9: Duo
  • 28: Cobra
  •  25: Abloy

Tray #: 8-2242

Applications: Dexter WCH19, WCL25, WCK6, DLC30Q, DLR30Q, DL2X30Q, SQ EX218, EX325, EX440, Heubsch, 32DG, Unimac front loaders

Height: 2.4″

Width: 3.515″

Length: 7.98″

Weight: 2 lb

Capacity: $120

Money Boxes per Case: 20

Ordering Guide

Money Box Ordering System

Money Box Part Number – Lock Type Number – P/N Code

Lock Type Numbers
TubularSentinel IIDuoCobraAbloyMedeco
Low SecurityMedium SecurityMedium SecurityHigh SecurityHigh SecurityHigh Security
0429282510
Popular Lock Keying
Locks CodedGroupingNumber of Keys Per LockP/N Code
AssortedEach Lock Coded Differently14
AssortedEach Lock Coded Differently25
Alike20 to Same Code110
Alike100 to Same Code17
AlikeQuantities of Your Choice16
AlikeTo Code of Your Choice, Quantity of Your Choice119
AlikeQuantities of Choice, 2 Keys22
Money Box Locks

Money Box Lock Part Number – P/N Code

Part NumberDescription
77-52-7Lock & Cam Assembly, Service Door 4310
7-43-XGI Tubular Lock & Key
77-1086-XDuo Lock, 1 Key Per Lock
77-1058-XAbloy-G Lock, 1 Key Per Lock
77-1075-XMedeco Lock, 1 Key Per Lock
77-1085-XCobra Lock, 1 Key Per Lock, Group of 20
91-1101-XSentinel 3 Lock, 1 Key Per Lock
77-1060-6IPSO, T-Shaft 13.1", Medeco, 1/4 turn, left hand
77-1030-22-XMaytag, Lock & Stud, Abloy, 1/4 Turn, KA, Specific Qty
77-1034-22-XMaytag, T-Shaft 5.5", Duo, 1/4 Turn, Group of 20, KA
77-1034-34-XMaytag, T-Shaft 12.20", Duo, KA
77-1034-38-4Maytag, T-Shaft 12.70", Duo, KA
77-1035-34-XMaytag, T-Shaft 12.20", Abloy G, 1/4 Turn, KD
77-1037-22-XMaytag, T-Shaft 5.5", Medeco, 1/4 Turn, Group of 10, KA
77-1054-22-XMaytag, T-Shaft 5.5", Cobra, 1/4 Turn, KA, Specify Qty
77-1054-37-XMaytag, T-Shaft 9", Cobra, 1/4 Turn, Group of 20, KA
8-1000-22-XMaytag, T-Shaft 5.5", GI Tubular, 1/4 Turn
8-1000-34-XMaytag, T-Shaft 12.18", GI Tubular, 1/4 Turn
8-1000-37-XMaytag, T-Shaft 9", GI Tubular
91-1045-66-XMaytag, Threaded Lock & Stud, Sentinel II
91-1055-22-XMaytag, T-Shaft 5.5", Sentinel II, 1/4 Turn
91-1055-41-XMaytag, Lock & Stud 8.5", Sentinel II, 1/4 Turn
KIT810-XMaytag, Medeco Lock, 1/4 Turn
8-1001-62-XNorge, Threaded Lock & Stud, GI Tubular
77-1035-33-XSQ Stack, T-Shaft 7.5", Abloy G, 1/4 Turn
Meters

Greenwald Industries’ complete Meters are designed to operate electrical vending equipment where time operation is necessary. In addition to laundry equipment, the meters provide monitored service for lighting and water consumption applications. All meters can operate on US currency or tokens.

View Meter Specifications

4310 Series
4310-series
  • All purpose coin meter for a variety of exterior vending applications
  • Two models available:
    • 4310 G1: Equipped for coronet drop coin mechanism designed for $0.25 start only
    • 4310 G4: Equipped with 5900 quartermaster rotary meter, pricing options of $0.25, $0.50, $0.75 and $1.00. Time accumulation, multiple coin start and other options available.
  • All meters contain
    • Stainless meter case, left and right hand mounting
    • Epoxy coated UG 400A money box with GR lock & 2 keys
    • Wiring harness and mounting hardware
8325 Series
8325-series
  • Complete meter with time and coin chute activation
  • Designed to operate electrical vending equipment where time operation is necessary
  • Includes:
    • Zinc plated, enamel painted-steel meter case
    • Vertical 5 US coin chute, specify vend price
    • Epoxy coated UG 400A money box with GR lock & 2 keys
    • 5000P timer with choice of 1 to 3 switch operation
    • Wiring harness and mounting hardware
Meter Specifications
Series4310 Series8325 Series8325 Series
Part Number4310-G48325-G18325-G2
ActivationRotaryV5 Chute/SlideV5 Chute/Slide
Money Box400A with GR Lock and 2 Keys400A with GR Lock and 2 Keys400A with GR Lock and 2 Keys
Voltage115V AC115V AC115V AC
Height9.5"7.078"7.078"
Width4.328"4.343"4.343"
Depth9"10.906"10.906"
MountingWiring and Mounting Hardware Included Right-Hand*Wiring and Mounting Hardware Included Right-HandWiring and Mounting Hardware Included Right-Hand
Warrany1 Year1 Year1 Year
Available Options
Token OperationXXX
Tokette OperationXX
V5 Canadian Chute/SlideXX
V8 Chute/SlideXX
24V or 220V OperationXXX
Left-Hand MountingXXX
Multiple Coin StartX
10 Watt Heater KitX
Shut-Down Warning LightX
Starters

Greenwald Industries’ 7600 Series Slide Activated Starters are compact electromechanical devices that provide a simple solution to start a front-loading washer upon coin insertion. Our starters offers the flexibility to choose between one and seven coin slide insertions. The desired number of coin insertions is easily “dialed in” by positioning a tab in any one of the seven-marked positions on the CAM.

starters
  • Starts coin-activated washing machines
  • Set desired number of coins with simple turn-dial CAM
  • Use with:
    • Electrolux
    • General Electric
    • Sears
    • SpeedQueen
    • Wascomat
Slide Activated Start Mechanisms for Washers
WasherPart NumberVoltage
Wascomat76-1030-11110 V
Wascomat76-1030-12220 V
New Wascomat76-1030-21110 V
New Wascomat76-1030-22220 V
SpeedQueen76-1040-1110 V
General Electric (front load)76-1030-21110 V
Sears (front load)76-1030-23110 V
Manual Timers, Relays & Mechs
Part NumberDescription
15-1000-1Manual Set Timer 110V/15M
15-1000-2Manual Set Timer 110V/30M
15-1000-3Manual Set Timer 110V/60M
15-1000-6Manual Set Timer 220V/60M
Timers

Greenwald Industries’ 5000 and 5900 Series Timers offer an easy solution to increase or decrease time settings on electrical appliances. The 5000 Series model is a slide activated timer that accumulates time with each coin slide push. The 5900 Series models – the exclusive QuarterMasters by Greenwald, are coin-activated electromechanical timers that accept most currency including international coinage.

5000 Series
5000-timer
  • Adjustable time settings can be easily increased or decreased
  • Accumulates with each coin slide push
  • Specify timing and voltage when ordering
Voltage110/220V AC 50/60Hz
Average Power Consumption3 watts
Net Weight.9 lbs
Warranty1 Year
DryerStylePart Number
Maytag with Bracket2 SwitchKIT 1333
Maytag No Bracket2 Switch50-1212-21
IDC2 Switch50-1212-31
SpeedQueen2 Switch50-1212-46
Inglis2 Switch50-1212-49
Whirlpool2 Switch50-1212-51
SpeedQueen2 Switch50-1212-60
SpeedQueen3 Switch50-1213-18
SpeedQueen3 Switch50-1213-27
SpeedQueen3 Switch50-1213-30
GE 45 Mins3 Switch50-1223-10
Sears/Whirlpool2 Switch50-1232-6
Whirlpool2 Switch50-1232-7
5900 Series
QuarterMasters
5900
  • Available in round and square face options
  • Adjustable time settings can be easily increased or decreased
  • 1-4 coin start
  • Available for U.S., Canadian and foreign currencies, as well as various brass tokens
  • Specify timing, voltage, number of coins to start (1-4) and type of coinage when ordering
5900 Mechs
UsePart NumberStyle
Standard59-3100-55Round-1 Switch
SpeedQueen59-3200-15Square-2 Switch
SpeedQueen59-3200-15-25Square-2 Switch 25C
SpeedQueen59-3200-2-25Round-2 Switch 25C
Dexter/Maytag59-3200-33Round-2 Switch
IDC59-3200-37Round-2 Switch
Cissell59-3200-39Round-2 Switch
ADC59-3300-1Round-3 Switch
Available Time Intervals
PINs on CAMPart Number1/10 (110V, 24V)1/20 (110V, 24V)1/30 (110V, 24V)1/60 (110V, 24V)
259-439-25101530
359-439-33M 20S6M 40S1020
459-439-42.557.515
559-439-524612
659-439-61M 40S3M 20S510
759-439-71M 26S2M 51S4M 17S8M 34S
859-439-81M 15S2M 30S3M 45S7M 30S
959-439-91M 7S2M 13S3M 20S6M 40S
1059-439-101236
1259-439-1250S1M 40S2M 30S5
Tokens and Tokettes

Greenwald Industries’ Token and Tokettes can be used for pricing flexibility in many types of self-service installations, such as laundries, car washes, game arcades and many more. The value can be varied by the owner at will—perfect for specialty promotions and advertising programs. Using tokens or tokettes is a low-cost way to enhance security and reduces vandalism.

Tokens
tokens2
  • Price Flexibility
  • Promotions
  • Security
  • Solution for International Coins
Token Specifications
Part Number118-1118-10118-14118-5
Diameter.88" (22.3mm).95" (23.8mm).90" (22.8mm).99 (25.2mm)
Applicable Coin Systems
V5 Chute/SlideXXX
V8 Chute/SlideXX
5900 QuarterMaster Round FaceXX
5900 QuarterMaster Square FaceXX
Coronet Acceptor with Electronic Coin CounterXX
Tokettes
tokettes
  • Designed to work with Greenwald Industries’ Tokette Chute Systems
  • Available at a low cost
  • Made of breakable plastic
  • Assorted colors and sizes available
Part NumberDescriptionUOM
11-5015Tokette, Unbreakable OrangeM
11-5010-15Tokette II, GreenM
11-5010-16Tokette II, AquaM
11-5010-2Tokette II, BrownM
11-5010-9Tokette II, GrayM
11-5020-1Tokette II, BlackM
11-5020-12Tokette I, Baby PinkM
11-5020-13Tokette I, TanM
11-5020-17Tokette I, GoldM
11-5020-3Tokette I, WhiteM
11-5020-4Tokette I, Red M
11-5020-6Tokette I, Olive GreenM
11-5020-7Tokette I, YellowM
11-5020-8Tokette I, BlueM
11-5025-1Tokette III, PurpleM
11-5025-2Tokette III, OrangeM
11-5025-3Tokette III, TanM
Locks and Keys

Greenwald Industries offers a variety of combinations of locks and keys to meet your specific security needs.

Popular Service Locks
BrandLockTypeUsePart Number
General ElectricTubularCAMDoor74-1027-XX-XXX
General ElectricSentinel IICAMDoor91-1228-XX-XXX
MaytagTubularLock OnlyDoor7-41-X
MaytagTubularLock Only MX-7Door7-35-X
MaytagSentinel IILock OnlyDoor91-1101-32-X
SearsTubularCAMDoor68-1174-XX-XXX
SearsSentinel IICAMDoor91-1166-XX-XXX
SpeedQueenTubularCAMDoor74-1027-XX-XXX
SpeedQueenTubularSTUDDoor87-1235-X
SpeedQueenSentinel IICAMDoor91-1228-XX-XXX
SpeedQueenSentinel IISTUDDoor91-1240-XX-XXX
WhirlpoolTubularCAMDoor68-1174-XX-XXX
WhirlpoolTubularSTUDDoor Machine Top8-1181-XX-XXX
WhirlpoolSentinel IICAMDoor91-1166-XX-XXX
WhirlpoolSentinel IISTUDDoor Machine Top91-1168-XX-XXX
Key Code Identification
Lock TypeKey P/NCode Identification
Abloy "A" Metric77-2205-1212 Digits Ending with 160
Abloy "G"77-201410 Digits Ending with 411
Abloy "G" Left Handed77-2016
Cobra77-20184 Digits, Key Number Range 1001-9999
Duo (10)77-2026GW and 4 Digits Range GW0000-GW9999
Duo (14)77-2005-92 Digits, 1 Letter, 2 Digits
GI Tubular (Money Box)8-166-1GRJ30-GRJ720/GR300-GR4999/GR5001-GR5010/GR6000-GR6250/GR7000-GR999/T001-T2800 (or DB) J001-J999
Cobra Left-Hand77-2027
GI Tubular (Service Door)8-20GR & 3 Digits (None Below 100) GR & 4 Digits (No 5000s)
Medeco "G"77-2005-5G and 4, 5 or 6 Digits
Medeco (NEW)77-20206F or 6FA and 6 Digits (Look in Key Code Box)
MX-78-20-16ZB7 and MX7
Rampart77-2005-11W with 4 Digits (Also UGX and MG Plus 2 Digits)
Sentinel II & III91-200-19R4000-R4355 & R5000-R5929/K000-0342 & K4000-K4929/S6000-S6924 & S7000-S7349/U6000-U6349 & U7000-7924
